GMKtec NucBox M6 Ultra Review: A Powerful Mini PC for Work, Entertainment and More

Mini PCs have become increasingly attractive for users who want desktop-level flexibility without dedicating a large amount of desk space to a traditional tower. The GMKtec NucBox M6 Ultra is a particularly interesting option for buyers looking for a compact Windows PC with modern AMD hardware, upgradeable memory and storage, and an extensive selection of connectivity options.

Powered by the AMD Ryzen 5 7640HS processor and Radeon 760M integrated graphics, the M6 Ultra is designed to cover a wide range of everyday computing needs. Whether you are building a compact home-office setup, upgrading an older desktop, creating a media system, or simply want a small computer with room for future upgrades, there is plenty to examine here.

In this GMKtec NucBox M6 Ultra review, we will take a closer look at its processor, graphics, memory, storage, connectivity and practical advantages to help you understand what this mini PC offers.

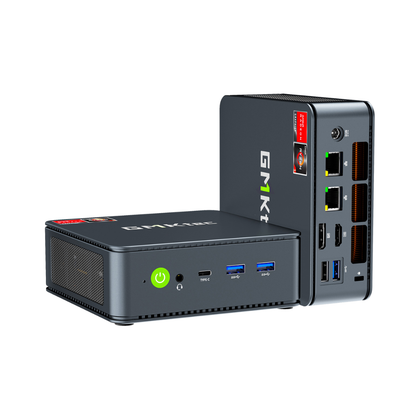

GMKtec NucBox M6 Ultra compact mini PC with front and rear connectivity.

Compact Design With Serious Hardware

One of the biggest attractions of a mini PC is obvious as soon as you place it on a desk: size. The GMKtec NucBox M6 Ultra measures approximately 128.8 × 127 × 47.8 mm, allowing it to fit into workspaces where a conventional desktop tower would be inconvenient.

The small footprint makes the M6 Ultra suitable for minimalist offices, study spaces, entertainment systems and multi-monitor workstations. GMKtec also includes a VESA mount, which provides additional flexibility when arranging a compact workstation.

Despite its small exterior, the system offers considerable internal expandability. This is an important distinction because compact computers do not necessarily have to sacrifice the ability to upgrade key components.

AMD Ryzen 5 7640HS Performance

At the heart of the NucBox M6 Ultra is the AMD Ryzen 5 7640HS. This processor provides six cores and twelve threads and can reach a maximum boost frequency of up to 5.0 GHz.

The processor is based on AMD’s Zen 4 architecture and is manufactured using a 4 nm process. This combination gives the M6 Ultra a strong foundation for productivity and general-purpose computing in a very compact chassis.

For everyday users, that means the machine is designed to handle common workloads such as web browsing, document editing, spreadsheets, video calls, media playback and multitasking. The additional processing capability also makes it relevant for users whose workload extends beyond basic office applications.

The M6 Ultra is powered by an AMD Ryzen 5 7640HS six-core, twelve-thread processor.

AMD Radeon 760M Integrated Graphics

Graphics are handled by the integrated AMD Radeon 760M, based on AMD’s RDNA 3 architecture. It features eight graphics cores running at up to 2600 MHz according to GMKtec’s specifications.

Integrated graphics are particularly useful in a mini PC because they eliminate the space and power requirements of a separate graphics card. The Radeon 760M gives the M6 Ultra graphics capability for everyday multimedia, high-resolution displays and suitable lighter graphical workloads while retaining the advantages of the mini-PC format.

Buyers specifically seeking maximum performance for demanding AAA gaming or professional GPU rendering should naturally compare the system with dedicated-GPU alternatives. However, for a compact all-purpose computer, the combination of Ryzen 5 CPU performance and Radeon integrated graphics makes the M6 Ultra versatile.

Upgradeable DDR5 Memory

One of the strongest features of the M6 Ultra is its memory configuration. Rather than relying entirely on soldered memory, GMKtec provides two SO-DIMM slots using DDR5 4800 MT/s memory.

The system supports dual-channel memory and, according to GMKtec, can be expanded to as much as 128GB of RAM. That amount is far beyond what many everyday users require, but the upgrade ceiling gives the computer considerable flexibility.

This is particularly useful if your requirements change over time. A machine initially purchased for ordinary office use could later be upgraded with additional memory for more demanding multitasking or specialised applications.

Dual M.2 SSD Storage Expansion

Storage expansion is another area where the M6 Ultra stands out. GMKtec equips the system with two M.2 NVMe SSD slots, with total storage expansion of up to 8TB listed by the manufacturer.

Having two SSD slots provides several practical possibilities. Users can install a larger primary drive, add a second drive later, or separate operating-system and data storage.

For people working with large collections of photos, videos, documents or other files, having internal expansion capacity can be considerably more convenient than relying exclusively on external drives.

Dual SO-DIMM memory slots and dual M.2 SSD slots provide useful upgrade flexibility.

Excellent Connectivity for a Mini PC

Connectivity can make or break a compact desktop, and GMKtec has equipped the M6 Ultra with a useful range of interfaces.

The system includes USB 3.2 Gen 2 ports, USB 2.0, USB4, HDMI 2.0, DisplayPort, a 3.5 mm audio connection and two 2.5 Gigabit Ethernet ports.

The USB4 connection is especially noteworthy, offering bandwidth of up to 40 Gbps while supporting DisplayPort and Power Delivery functionality. The system also supports multiple display outputs through HDMI, DisplayPort and USB4.

According to GMKtec, HDMI 2.0 and DisplayPort support 4K at 60 Hz, while USB4 provides support for output up to 8K. Actual display capabilities will naturally depend on the monitor, cables and configuration being used.

Wi-Fi 6E and Dual 2.5G Ethernet

Wireless connectivity includes Wi-Fi 6E and Bluetooth 5.2. For wired networking, the machine provides two 2.5 Gigabit Ethernet ports.

Dual Ethernet interfaces can be especially interesting for advanced home networks, lab environments, networking applications or users who simply want more flexibility than the single Gigabit Ethernet connection found on many conventional desktops.

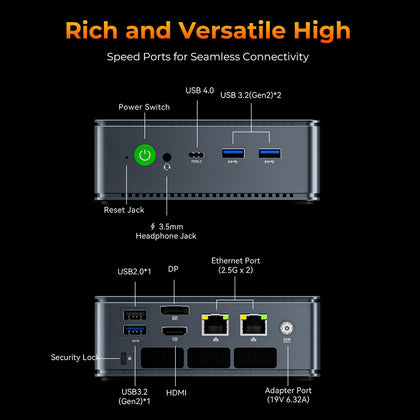

Front and rear ports provide extensive connectivity for displays, peripherals and networking.

Suitable for Home and Office Use

The combination of compact dimensions, Ryzen processing power and flexible connectivity makes the M6 Ultra suitable for several different scenarios.

For office users, it can serve as a small desktop computer for productivity, communications and multitasking. At home, it can be used as a general-purpose family computer or compact entertainment system. Its display outputs also make it appealing for people who need a multi-monitor workstation without a large tower occupying valuable desk space.

Content creators with moderate workloads may also appreciate the fast processor, DDR5 memory and NVMe storage options. The ability to expand both RAM and storage helps extend the useful life of the computer if workload requirements increase later.

Windows 11 Pro Support

GMKtec states that the M6 Ultra supports Windows 11 Pro. Buyers should pay attention to the exact configuration selected when ordering, particularly because the product is available in different hardware configurations.

For example, a barebone configuration does not include RAM, SSD or an operating system. Users who want a ready-to-use system should therefore carefully check the selected configuration before completing their purchase.

What’s Included?

According to the official specifications, the package includes the power adapter, HDMI cable, VESA mount, manual and warranty card. The supplied VESA mounting hardware is a welcome addition for buyers who want to create a particularly clean workstation.

The computer itself weighs approximately 528 grams before packaging, reinforcing how portable and space-efficient the platform is compared with a traditional desktop PC.

Who Should Consider the GMKtec M6 Ultra?

The M6 Ultra is particularly worth considering for buyers who value compact size without giving up upgradeability. Its two memory slots, two SSD slots, modern AMD processor and extensive I/O make it more flexible than many basic mini PCs.

It can make sense for remote workers, students, home-office users, multimedia enthusiasts and anyone building a compact workstation. Users interested in networking may also appreciate the dual 2.5G Ethernet connections.

As with any computer purchase, the right choice depends on workload. Buyers primarily interested in extremely demanding gaming or professional GPU-heavy applications should carefully evaluate their graphics requirements before choosing an integrated-graphics system.

GMKtec NucBox M6 Ultra: Key Advantages

• AMD Ryzen 5 7640HS with 6 cores and 12 threads
• AMD Radeon 760M integrated graphics
• Dual-channel DDR5 memory support
• Memory expansion up to 128GB
• Two M.2 NVMe SSD slots
• Storage expansion up to 8TB
• USB4 connectivity
• HDMI and DisplayPort video outputs
• Wi-Fi 6E and Bluetooth 5.2
• Dual 2.5 Gigabit Ethernet ports
• Compact and lightweight design
• VESA mounting option

Final Thoughts

The GMKtec NucBox M6 Ultra demonstrates how much hardware can now fit inside a compact desktop computer. Its Ryzen 5 7640HS processor provides a capable foundation, while Radeon 760M graphics, DDR5 memory and dual NVMe storage slots give the platform considerable versatility.

What makes the M6 Ultra especially interesting is that GMKtec has not sacrificed expansion and connectivity simply to achieve a small form factor. USB4, multiple display connections, Wi-Fi 6E, dual 2.5G Ethernet, two RAM slots and two SSD slots provide users with considerable flexibility.

If you are looking for a compact Windows mini PC for productivity, home-office work, entertainment or general desktop computing, the M6 Ultra deserves consideration alongside other systems in its performance class.

Before ordering, check the current configuration, price, availability and shipping information directly on the GMKtec UK website, as these details can change.
